Home > All Collections > LED Panel Light > 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light

2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light

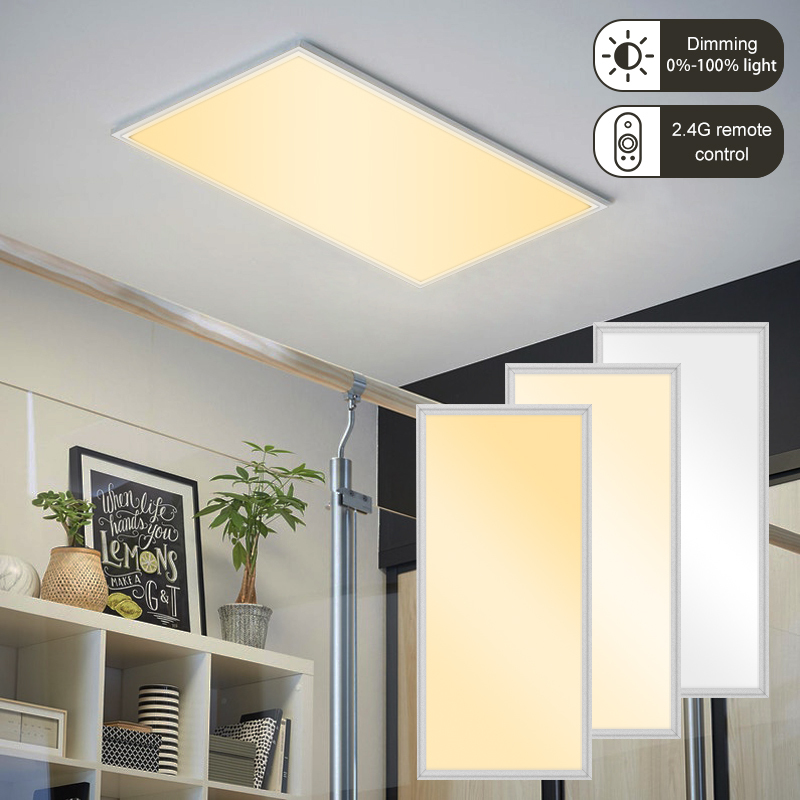

◉ Illuminating your place with 2700-6500K CCT tunable panel, a new lighting experience

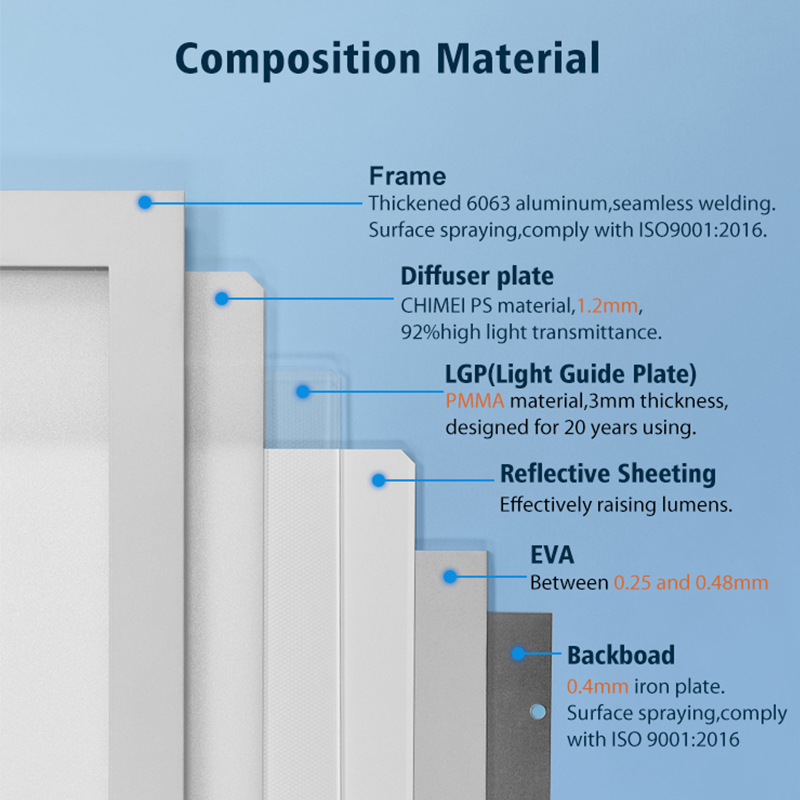

◉ Soft and uniform light output, Epistar chips and Mitsubishi PMMA LGP for better light output

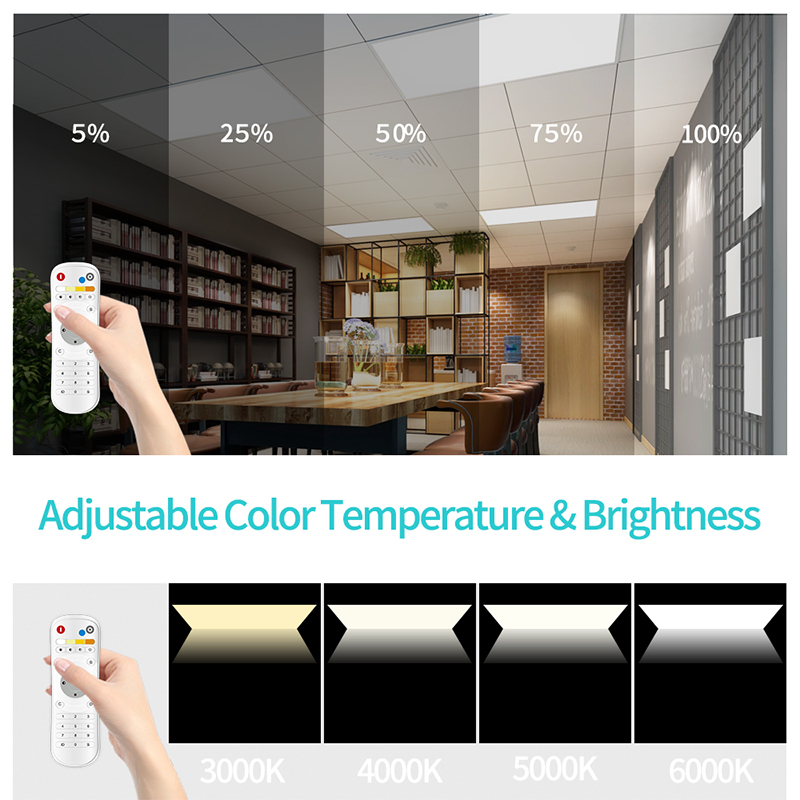

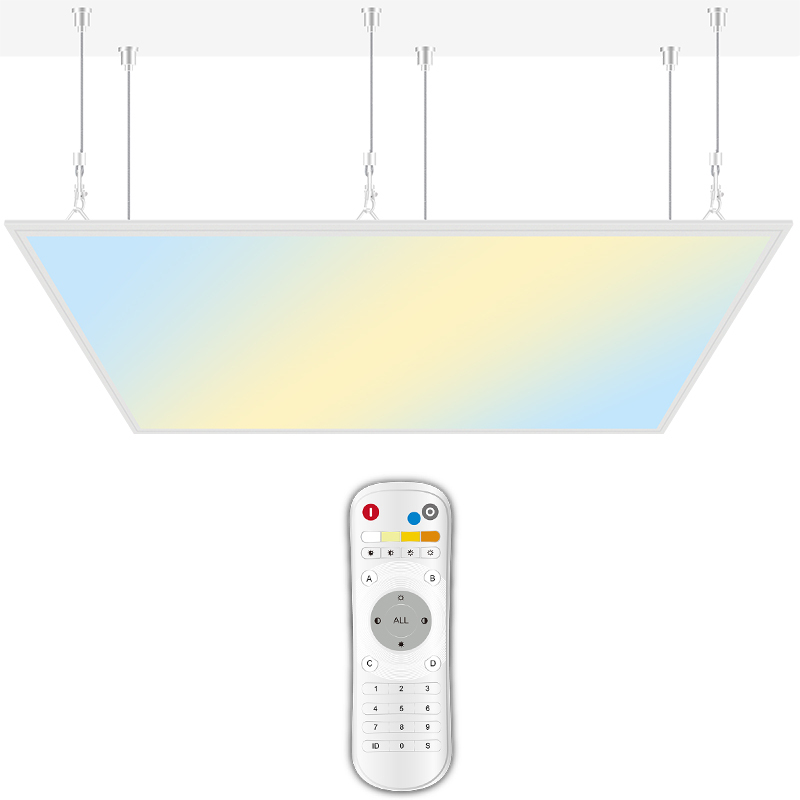

◉ Base on 2.4GHz, control the CCT panel by 2.4G wireless controller, no wiring trouble
◉ Single & all panel control, dimming single & all panel you want
◉ Save the scenes you like, press A, B, C, D to recall the scene.
GET A QUOTE
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light
  • 2.4G 595*1195mm 60120 CCT Tunable 2700-6500K LED Panel Light

SPECIFICATION



PRODUCT DESCRIPTION

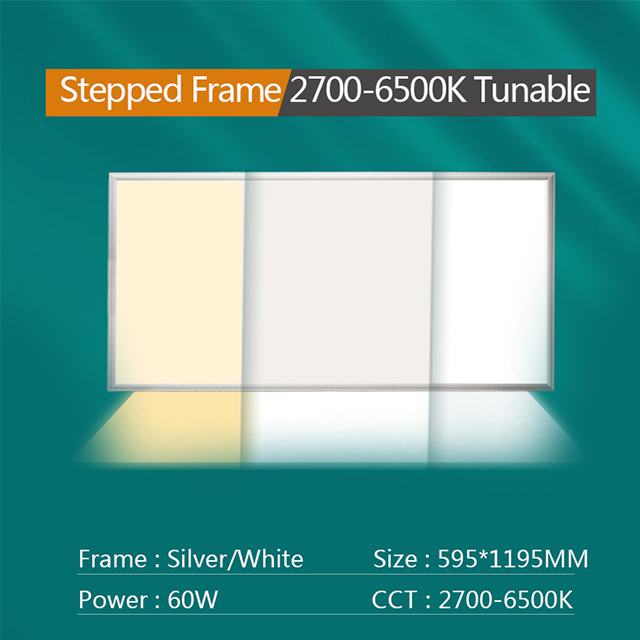

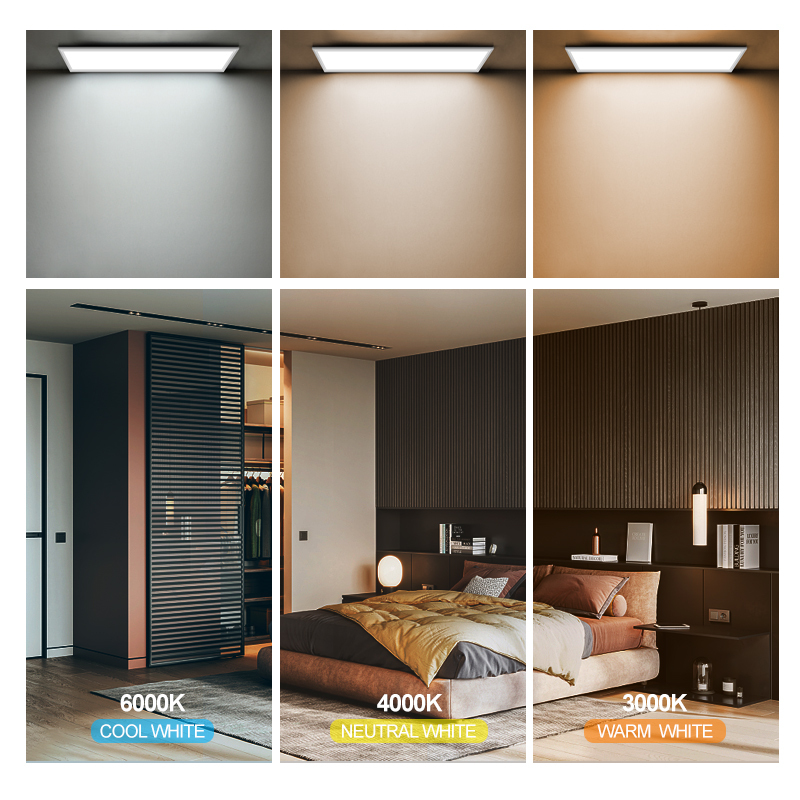

● CCT dimming range: 2700-6500K
● Different CRI option: 80Ra, 90Ra, 95Ra and 97Ra.
● Soft and uniform light output and flicker free.
● Multiple control modes: 2.4G, Wifi, Zigbee, 0-10V, etc.

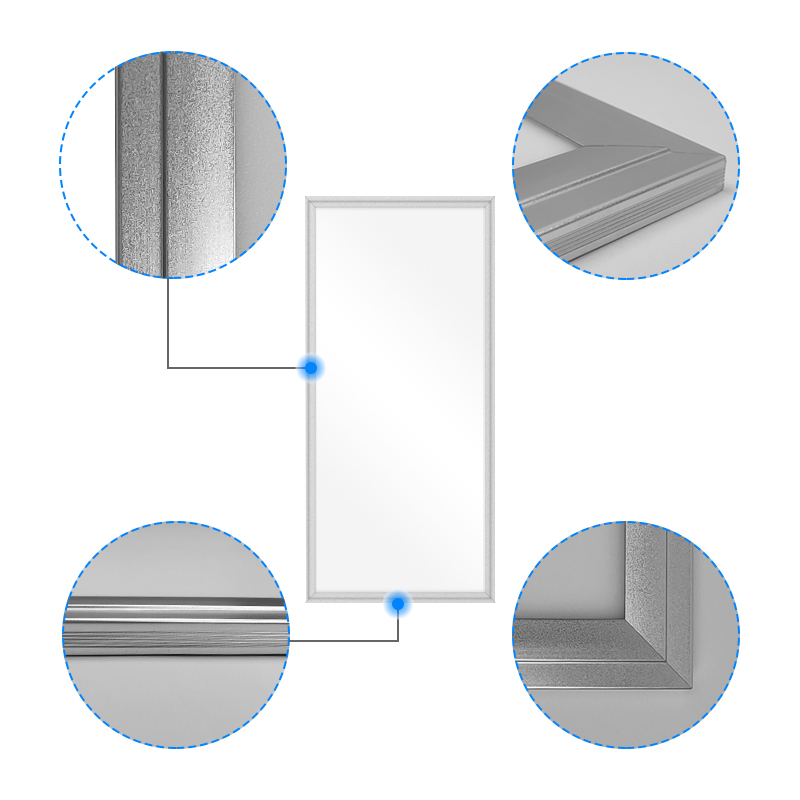

● Panel structure is very strong, better than most other panels.
● Skillful production lines and general material inventory guarantees short lead time.
● IES/LDT files are available.



ALL PANEL SIZE



PRODUCT PARAMETERS

Model No. WES-PLS60120-60GCP
Size/MM
595×1195×10MM
Frame Color
White / Silver
Input Voltage
AC100-240V
Power
60W
LED Type
384PCS SMD2835
CCT
2700-6500K Tunable
CRI
＞80Ra, ＞90Ra, ＞95Ra, ＞97Ra
Luminous Efficiency
100LM/W, 120LM/W
LGP Material
PMMA
Guaranty
5 Years


ALL SIZES OPTION

Size Power CCT Range CRI Option
295*295*10MM 18W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
295*595*10MM 24W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
595*595*10MM 36W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
595*595*10MM 48W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
620*620*10MM 36W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
620*620*10MM 48W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
295*1195*10MM 36W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
295*1195*10MM 48W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra
595*1195*10MM 60W 2700-6500K CCT Tunable 80Ra/90Ra/95Ra/97Ra

WIRING
